2.0 Tower Series -4-5MW

The SET 2.0 series has three different tower heights that meet most turbine load specifications for 4-5MW power generation. It offers three products that can be selected based on site characteristics to minimize the cost of levelized kilowatt hours (LCOE).

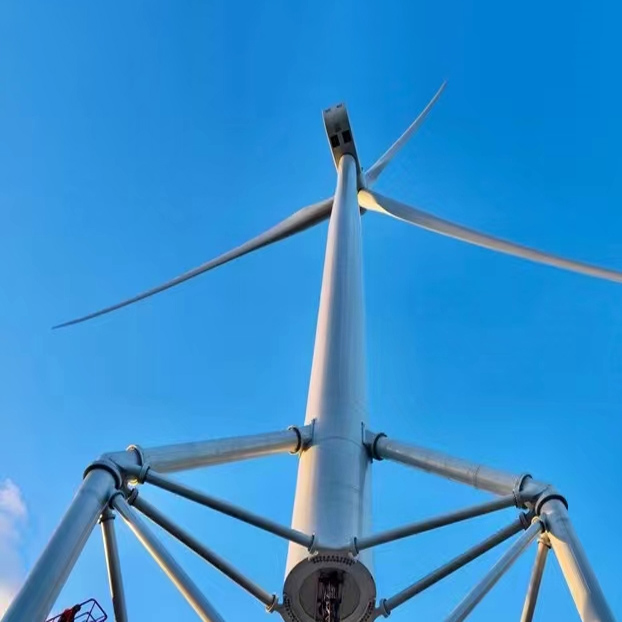

Figure 3-1: Nabralift 2.0 Tower Series

The development of the 2.0 tower series aims to improve modularity:

>These three tower models have the same transition element design.

>Five different framework module designs (with different column thicknesses) can be used to configure these three tower models. The highest tower consists of 5 modules, while the other two tower types remove one or two lowest modules respectively.

Therefore, various tower configurations are as follows:

>2.0-3F (three frame module), suitable for hub heights of 140 m-155 m.

>2.0-4F (four frame module), suitable for hub heights ranging from 155 to 170 meters.

>2.0-5F (five frame module), suitable for hub heights of 170 m-190 m.

Upper tubular towers can be designed for each tower type to meet the target hub height requirements.

The following are the dimensions for each model, with a reference tower height of 70m and a rotor of 145:

3-2:Nabralift 2.0-3F

3-3:Nabralift 2.0-4F

3-4: Nabralift 2.0-5F

3.0 Tower Series -6-7MW

The SET 3.0 series is a brand new series of products composed of towers of different heights, which meet most turbine load specifications for 6-7MW power generation. It offers a variety of products and can be selected according to on-site characteristics to minimize the cost of levelized kilowatt hours (LCOE).

SET 3.0 is currently under development.

Customized design by customers

We can develop customized Nabralift towers according to customer requirements to meet specific requirements, such as design load, frequency, hub height, etc
